Description

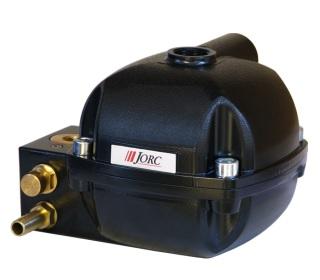

3805 JORC NURFORS-CR CONDENSATE WATER ZERO LOSS DRAIN
The NUFORS-CR removes condensate from compressed air systems without using electricity and without the unnecessary loss of compressed air.
The discharge process is automatic and is based on a newly developed 3/2 way level controlled valve principle that operates a piston type direct acting valve. The advantage of this valve principle is that the NUFORS-CR’s orifice can be 6 mm, offering an increased reliability factor.
The NUFORS-CR is ideally suited in applications where power is not available, too expensive or not reliable.
In addition, the NUFORS-CR can be applied in applications that demand a higher IP rating (International Protection rating or Ingresss Protection.
The NUFORS-CR offers an IP 68/NEMA 6 rating.
SPECIFICATIONS
| MAXIMUM COMPRESSOR CAPACITY | 100 m³/min. |
| PRESSURE RANGE | 3 - 16 bar |
| VALVE TYPE | Direct acting |
| VALVE ORIFICE | 6 mm |
| VALVE SEALS | FPM |
| INLET CONNECTIONS | 1/2″ (BSP or NPT), 3 inlet options |
| INLET HEIGHT | 12 cm (top), 9.7 cm and 1.5 cm (side) |
| OUTLET CONNECTION | 1/4" BSP with hose pipe connector |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| INTEGRATED MESH STRAINER | Yes |
| HOUSING MATERIAL | Corrosion resistant aluminium |
| ENCLOSURE PROTECTION RATING | IP68/NEMA6 |
